Model Whirlpool 2765^0A DOUBLE OVEN ELECTRIC RANGE – Common Parts & Diagrams
08 - CONTROL PANEL
10 - WIRING DIAGRAM

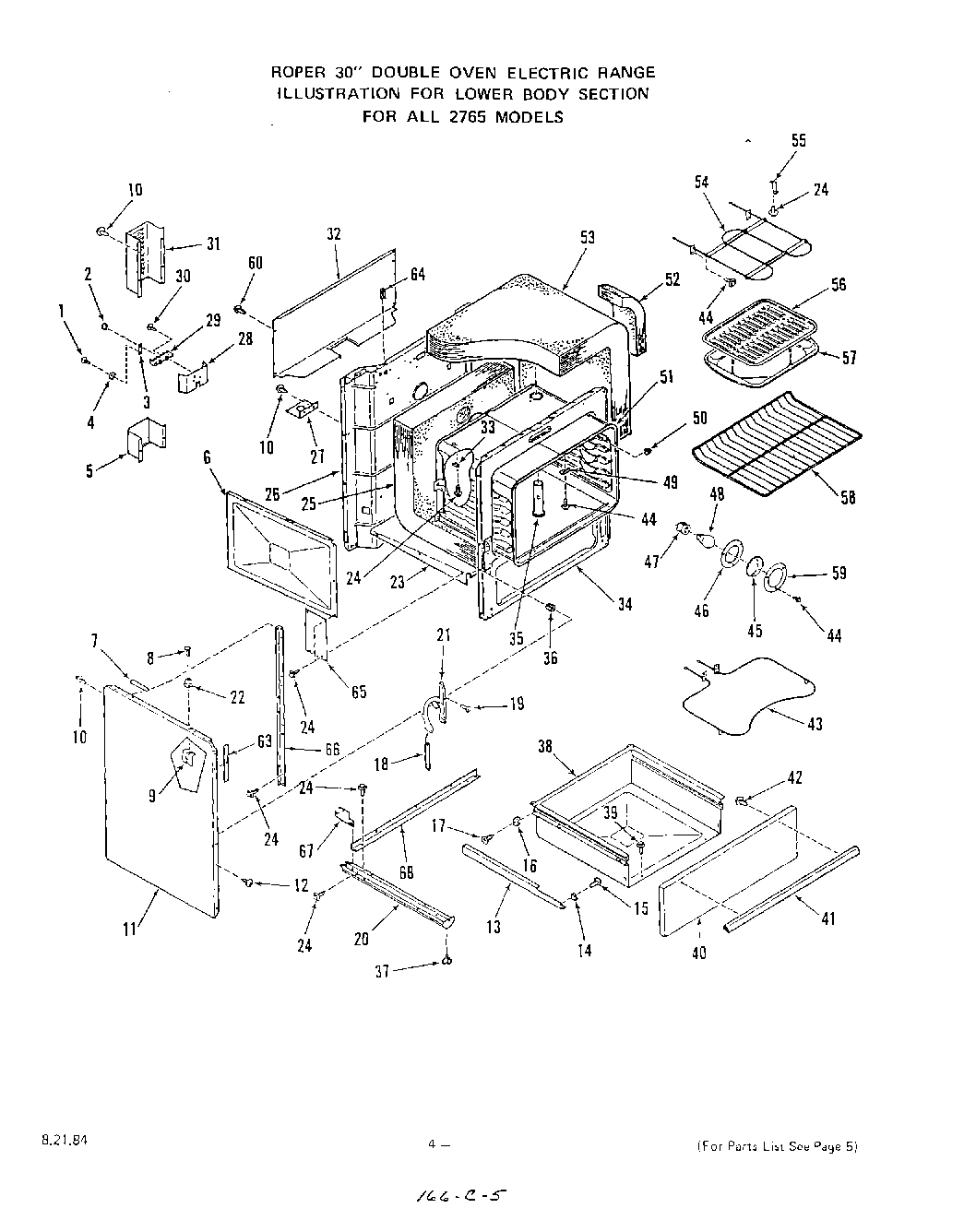

05 - LOWER BODY

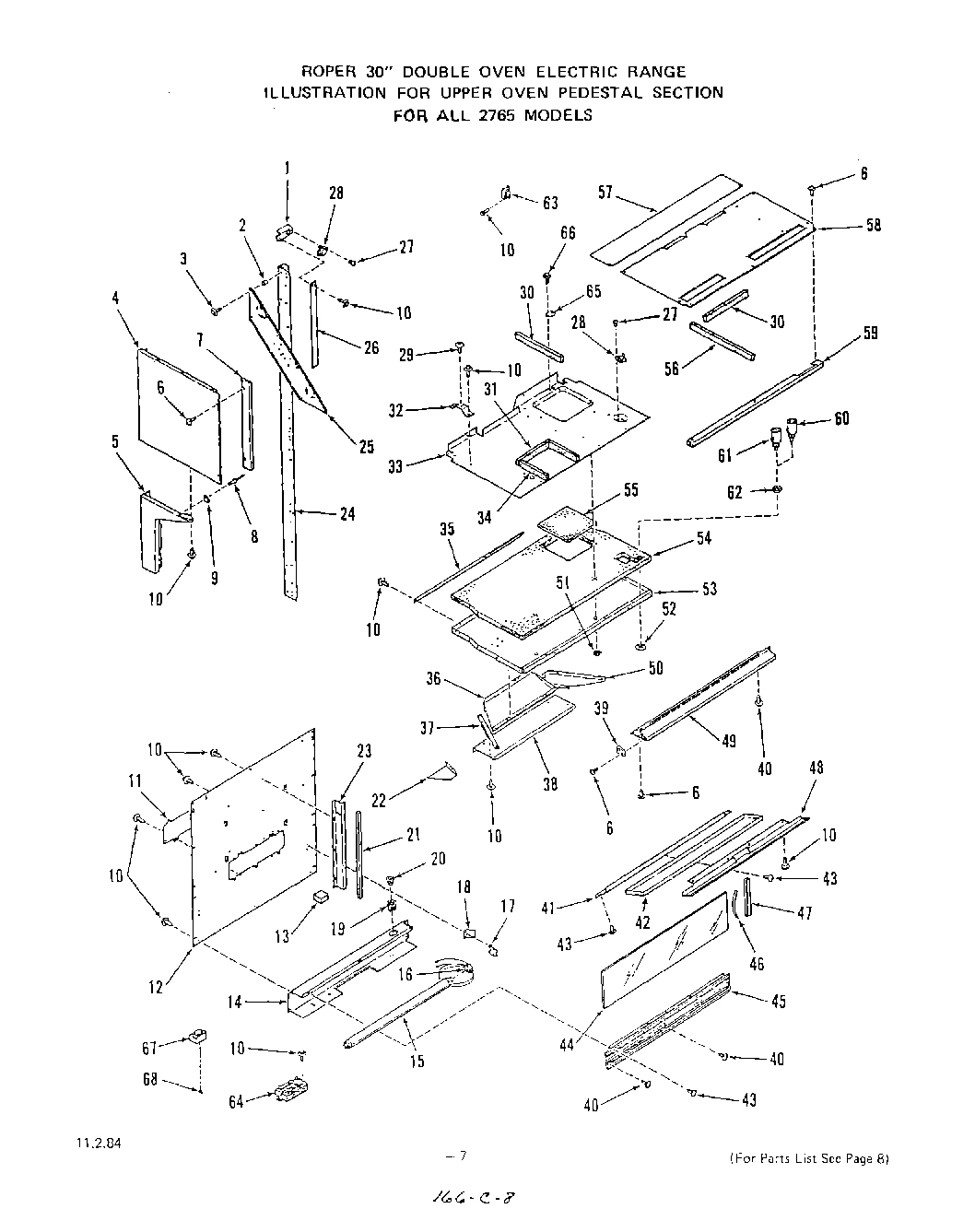

07 - UPPER OVEN PEDESTAL

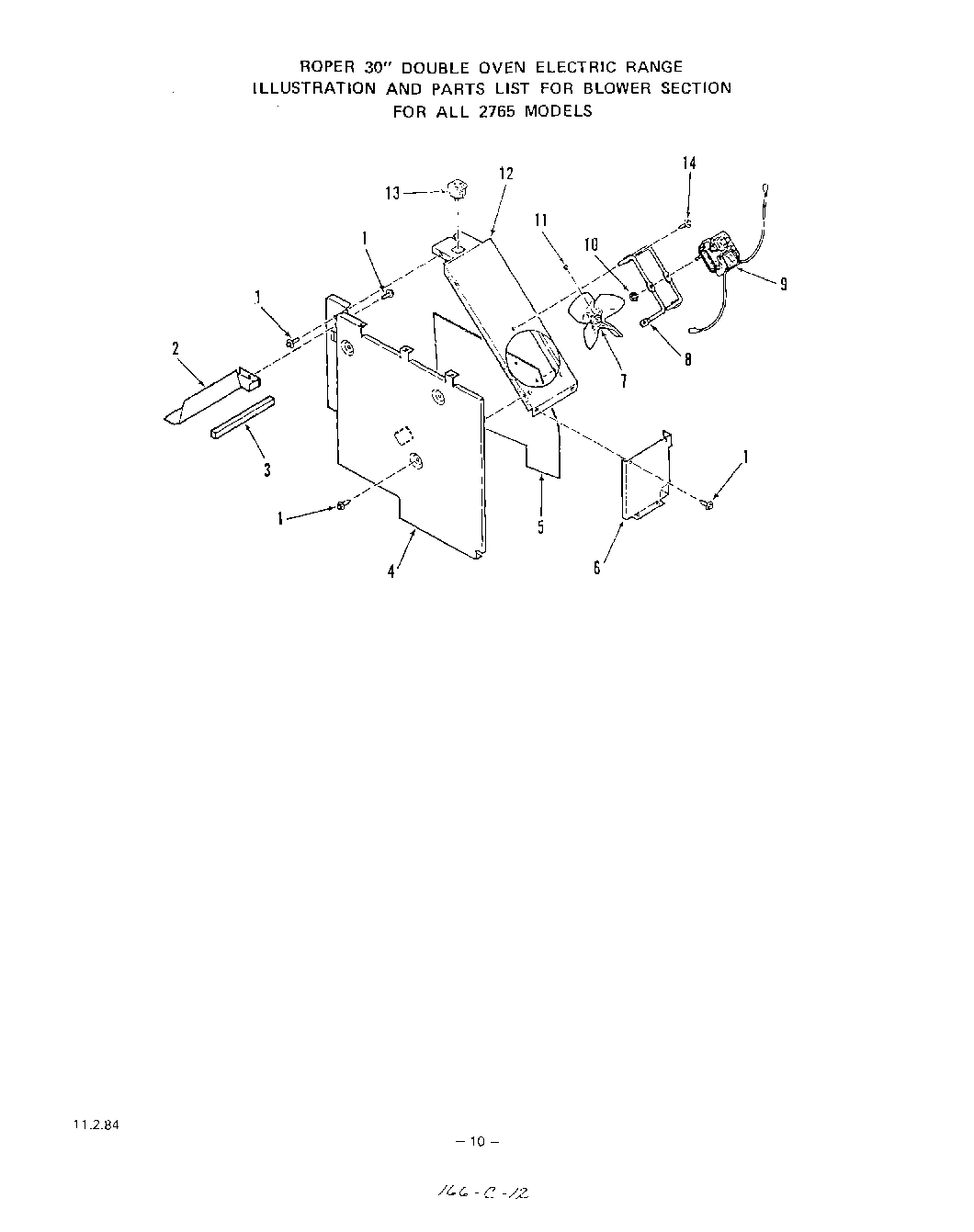

09 - BLOWER

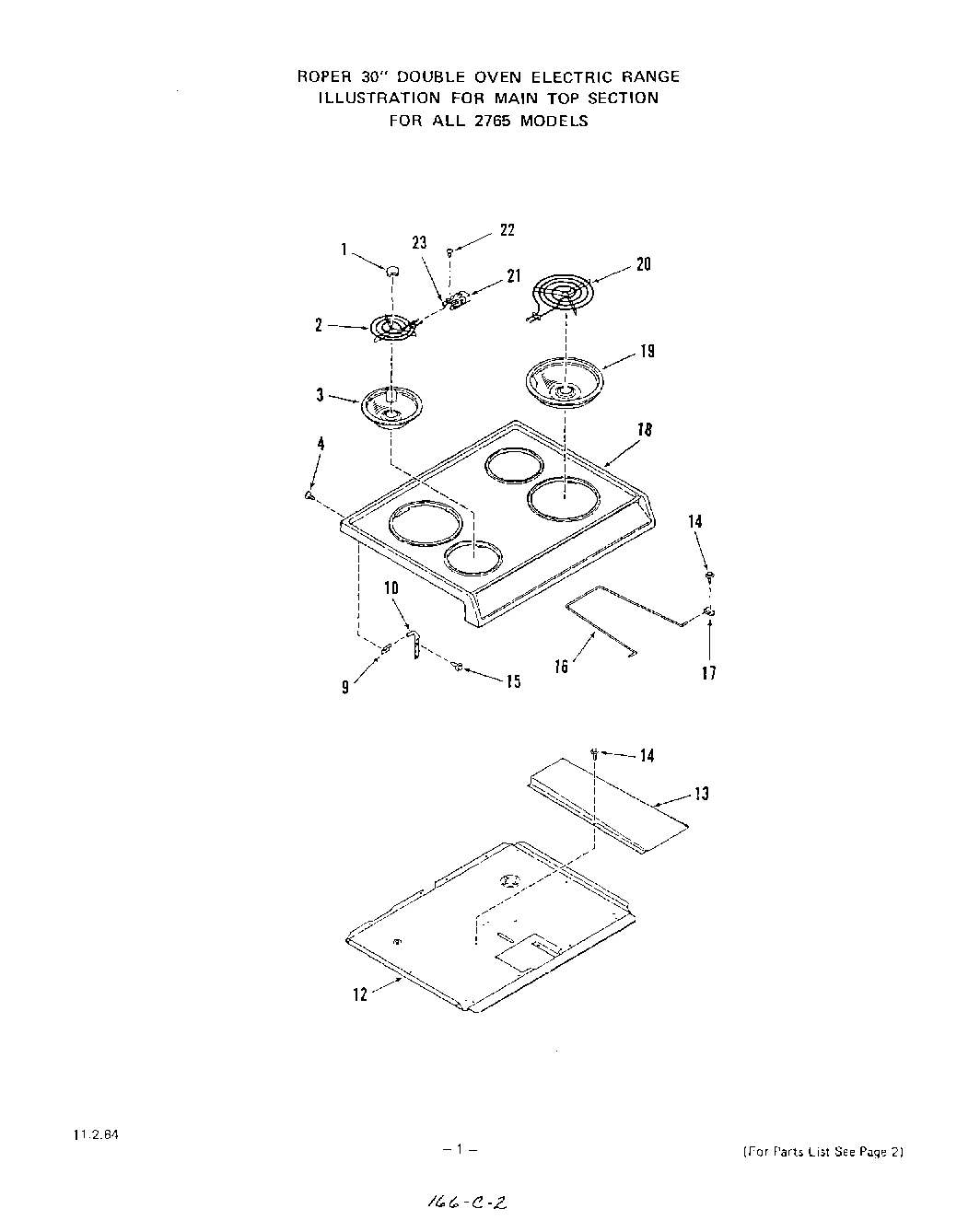

02 - MAIN TOP

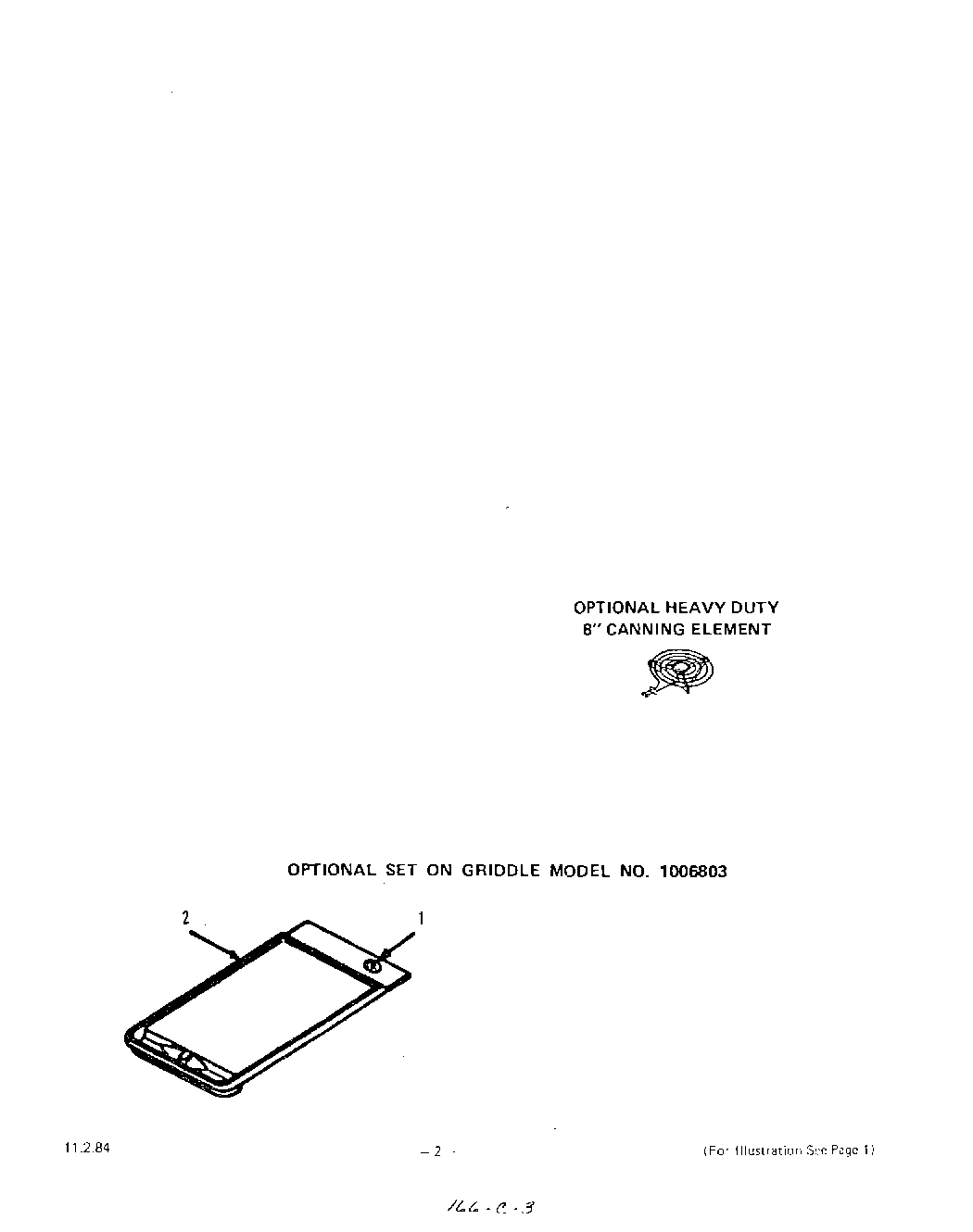

03 - HEAVY DUTY CANNING ELEMENT , GRID

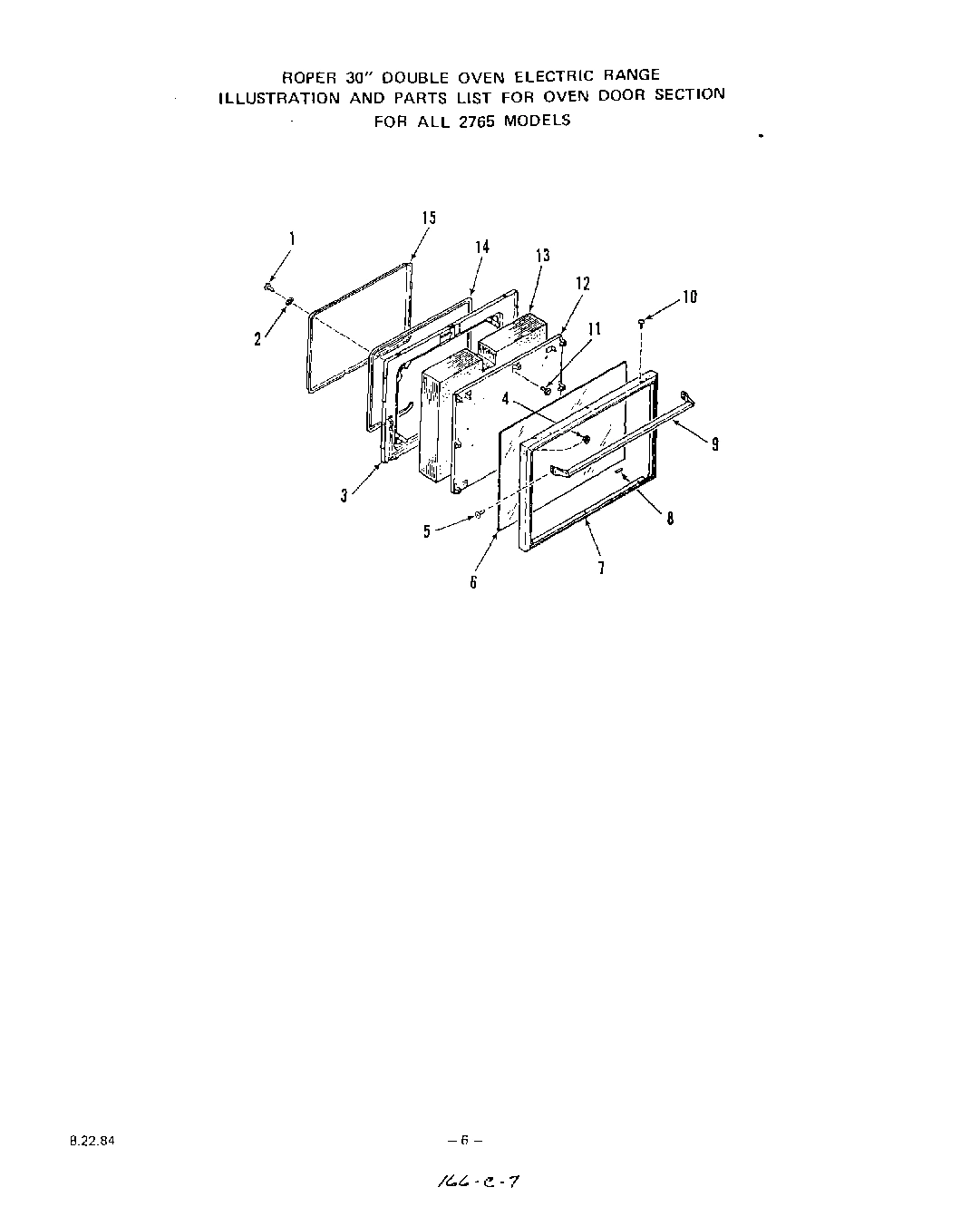

06 - OVEN DOOR

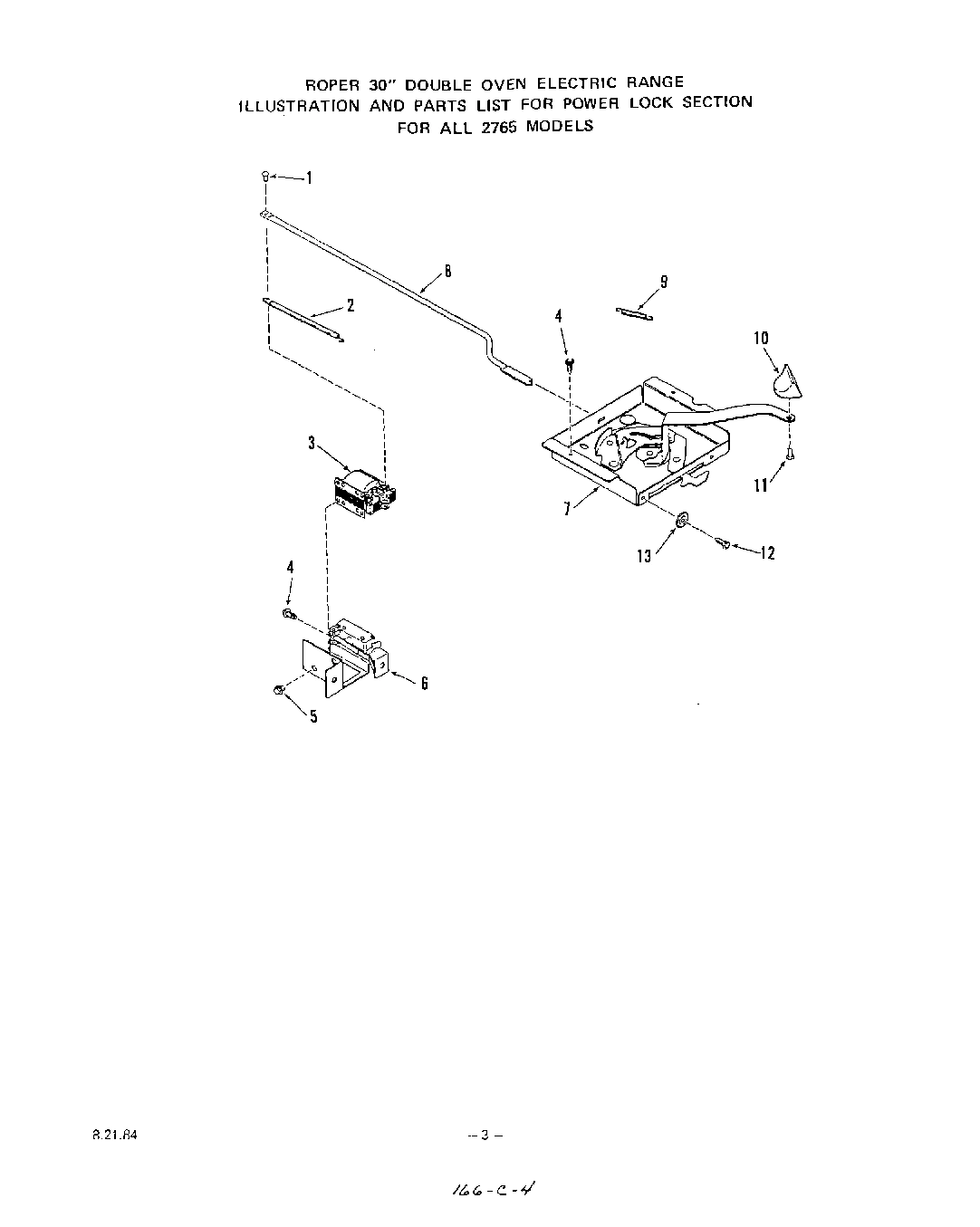

04 - POWER LOCK
Common parts from model Whirlpool 2765^0A DOUBLE OVEN ELECTRIC RANGE
1
Thermostat WPL 326492 Contact Us For Availability
1
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
1
Box - Auxiliary Thermostat WPL 326303 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
1
Thermometer WPL 87996 Contact Us For Availability
1
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
1
Stud WPL 326412 Contact Us For Availability
2
Selector Switch WPL 327163 Contact Us For Availability
2
Hex Nut 10-32 WPL 97816 Contact Us For Availability
2
Spacer (4 Req) WPL 325308 Contact Us For Availability
2
Baffle - Airway WPL 325743 Contact Us For Availability
2
6`` Surface Unit (240 Volt-208 Volt) Lt. Fron WPL 325507 Contact Us For Availability
2
Set-On Griddle WPL 236766 Contact Us For Availability
2
Spring-Solenoid WPL 326413 Contact Us For Availability
3
Push Switch - Oven Light WPL 307573 Contact Us For Availability
3
Ground Strap WPL 327255 Contact Us For Availability
3
Screw 10-32x1`` WPL 313190 Contact Us For Availability
3
Foam Strip WPL 305016 Contact Us For Availability
3
6`` Chrome Bowl-Lt., Rt. Rear & Lt. Front WPL 296481 Contact Us For Availability
3
Lining-Oven Door WPL 325951 Contact Us For Availability
3
Solenoid Only WPL 327003 Contact Us For Availability
4
Washer WPL 299425 Contact Us For Availability
4
Upper Oven Body Side (White - Left) WPL 325310 Contact Us For Availability
4
Upper Oven Body Side (Almond - Left) WPL 325314 Contact Us For Availability
4
Upper Oven Body Side (White - Right) WPL 325316 Contact Us For Availability
4
Upper Oven Body Side (Almond - Right) WPL 325320 Contact Us For Availability
4
Upper Oven Body Side (Black - Left) WPL 327643 Contact Us For Availability
4
Upper Oven Body Side (Black - Right) WPL 327644 Contact Us For Availability
4
Upper Oven Body Side (Toast - Left) WPL 328209 Contact Us For Availability
4
Upper Oven Body Side (Toast - Right) WPL 328210 Contact Us For Availability
4
Upper Oven Body Side (Platinum - Left) WPL 328211 Contact Us For Availability
4
Upper Oven Body Side (Platinum - Right) WPL 328212 Contact Us For Availability
4
Side - Compartment WPL 325380 Contact Us For Availability
4
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
4
Keps Nut 8-32 (4 Req) WPL 239764 Contact Us For Availability
5
Screw 4-24x1/4`` WPL 315617 Contact Us For Availability
5
Wire Shield-Lower WPL 327258 Contact Us For Availability
5
Pedestal-Upper Oven (White - Right) WPL 325283 Contact Us For Availability
5
Pedestal-Upper Oven (Almond - Right) WPL 325287 Contact Us For Availability
5
Pedestal-Upper Oven (White - Left) WPL 325289 Contact Us For Availability
5
Pedestal-Upper Oven (Almond - Left) WPL 325293 Contact Us For Availability
5
Pedestal-Upper Oven (Black - Left) WPL 327641 Contact Us For Availability
5
Pedestal-Upper Oven (Black - Right) WPL 327642 Contact Us For Availability
5
Pedestal-Upper Oven (Toast - Left) WPL 328127 Contact Us For Availability
5
Pedestal-Upper Oven (Toast - Right) WPL 328128 Contact Us For Availability
5
Pedestal-Upper Oven (Platinum - Left) WPL 328213 Contact Us For Availability
5
Pedestal-Upper Oven (Platinum - Right) WPL 328214 Contact Us For Availability
5
Air Duct WPL 325723 Contact Us For Availability
5
Screw 8-32x1/2`` (4 Req) WPL 319447 Contact Us For Availability
5
Mounting Screw WPL 319433 Contact Us For Availability
6
Mounting Panel-Controls WPL 325709 Contact Us For Availability
6
Retainer-Insulation (Lt. or Rt.) WPL 324188 Contact Us For Availability
6
Screw 6-20x3/8`` (Nickel Finish) WPL 327621 Contact Us For Availability
6
Front - Blower Mounting Plate WPL 326281 Contact Us For Availability
6
Glass-Oven Door WPL 320736 Contact Us For Availability
6
Bracket w/Switch WPL 327034 Contact Us For Availability
7
Spacer-Main Top (Lt. or Rt.) WPL 326914 Contact Us For Availability
7
Side Trim (Right) WPL 325330 Contact Us For Availability
7
Side Trim (Left) WPL 325492 Contact Us For Availability
7
Fan Blade WPL 326280 Contact Us For Availability
7
Frame-Oven Door WPL 326001 Contact Us For Availability
7
Oven Door Lock Assm. (Inc. Key 9) WPL 326877 Contact Us For Availability
8
Trim Nut WPL 321667 Contact Us For Availability
8
Screw 6-32x7/8`` WPL 107551 Contact Us For Availability
8
Pop Rivet WPL 101523 Contact Us For Availability
8
Support-Blower Motor WPL 327321 Contact Us For Availability
8
Cushion WPL 112370 Contact Us For Availability
8
Rod-Oven Door Lock WPL 308829 Contact Us For Availability
9
Knob-Selector Switch & Thermostat WPL 325363 Contact Us For Availability
9
Bracket-Body Side (Lt. or Rt.) WPL 326516 Contact Us For Availability
9
Retainer-Lt. or Rt. WPL 285523 Contact Us For Availability
9
Motor - Blower WPL 326278 Contact Us For Availability
9
Bracket-Main Top Hinge (2 Req) WPL 320931 Contact Us For Availability
9
Handle WPL 303342 Contact Us For Availability
9
Spring-Lock Handle WPL 299599 Contact Us For Availability
10
Indicator Light (3 Req) WPL 325875 Contact Us For Availability
10
Keps Nut 6-32 WPL 236313 Contact Us For Availability
10
Hinge-Main Top (Right) WPL 320921 Contact Us For Availability
10
Hinge-Main Top (Left) WPL 320922 Contact Us For Availability
10
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
10
Knob-Oven Door Lock Handle WPL 323363 Contact Us For Availability
11
Knob-Infinite Control (4 Req) WPL 325364 Contact Us For Availability
11
Body Side (Lt. or Rt.) (White) WPL 326055 Contact Us For Availability
11
Body Side (Lt. or Rt.) (Almond) WPL 326059 Contact Us For Availability
11
Body Side (Lt. or Rt.) (Black) WPL 326102 Contact Us For Availability
11
Body Side (Lt. or Rt.) (Platinum) WPL 327939 Contact Us For Availability
11
Body Side (Lt. or Rt.) (Toast) WPL 327940 Contact Us For Availability
11
Cover Plate WPL 322992 Contact Us For Availability
11
Set Screw 10-32 WPL 70286 Contact Us For Availability
11
Screw 6-32x15/32`` WPL 313768 Contact Us For Availability
12
Knob-Clock (Start & Stop Time) (3) WPL 109225 Contact Us For Availability
12
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
12
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
12
Wire Cover - Upper Oven WPL 325773 Contact Us For Availability
12
Mounting Plate - Blower WPL 325382 Contact Us For Availability
12
Burner Box Bottom WPL 326064 Contact Us For Availability
12
Retainer-Insulation WPL 325987 Contact Us For Availability
13
Control Panel Trim (Included w/Key 14) WPL ARI11477A5 Contact Us For Availability
13
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
13
Foam Strip-(2 Req) WPL 326696 Contact Us For Availability
13
Convenience Outlet (Without Wire Leads) (1 Re WPL 109180 Contact Us For Availability
13
Convenience Outlet (With Wire Leads (1 Req)) WPL 328870 Contact Us For Availability
13
Cover-Lock Rod WPL 308830 Contact Us For Availability
13
Washer WPL 21067 Contact Us For Availability
13
Insulation WPL 326000 Contact Us For Availability
14
Control Curtain (Inc`s. 13) WPL 329563 Contact Us For Availability
14
Slide Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
14
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
14
Wire Cover-Fluorescent Lam WPL 329068 Contact Us For Availability
14
Main Top WPL 324342 Contact Us For Availability
14
Main WPL 328927 Contact Us For Availability
14
Gasket WPL 292244 Contact Us For Availability
15
Lens-Clock WPL 325365 Contact Us For Availability
15
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
15
WPL 71734 WPL 71734 Contact Us For Availability
15
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
15
Plug-Oven Door Lining WPL 326179 Contact Us For Availability
16
Clock w/1 Hr. Timer WPL 325362 Contact Us For Availability
16
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
16
WPL 327790 WPL 327790 Contact Us For Availability
16
WPL 327791 WPL 327791 Contact Us For Availability
16
Support Rod-Main Top WPL 284164 Contact Us For Availability
17
Tubular Clip (4 Req.) WPL 293577 Contact Us For Availability
17
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
17
WPL 324746 WPL 324746 Contact Us For Availability
17
Clip (2 Req) WPL 285945 Contact Us For Availability
18
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
18
Spring-Oven Door (Lt. or Rt.) WPL 326964 Contact Us For Availability
18
WPL 321107 WPL 321107 Contact Us For Availability
18
Main Top (White) WPL 326530 Contact Us For Availability
18
Main Top (Almond) WPL 326531 Contact Us For Availability
18
Main Top (Chrome) WPL 327356 Contact Us For Availability
18
Main Top (Toast) WPL 328353 Contact Us For Availability
18
Main Top (Platinum) WPL 328354 Contact Us For Availability
19
Barrier Intrusion WPL 326354 Contact Us For Availability
19
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
19
WPL 277608 WPL 277608 Contact Us For Availability
19
8`` Chrome Bowl (Rt. Front & Lt. Rear) WPL 304969 Contact Us For Availability
20
Infinite Control (4 Req) WPL 320944 Contact Us For Availability
20
Base w/Leg Levelers (Lt. or Rt.) WPL 327020 Contact Us For Availability
20
WPL 106208 WPL 106208 Contact Us For Availability
20
8`` Surface Unit (240 Volt-208 Volt) Rt. Fron WPL 325503 Contact Us For Availability
21
Wire Lead w/Resistor WPL 328094 Contact Us For Availability
21
Hinge-Oven Door (Right) WPL 326012 Contact Us For Availability
21
Hinge-Oven Door (Left) WPL 326013 Contact Us For Availability
21
WPL 306543 WPL 306543 Contact Us For Availability
21
WPL 326697 WPL 326697 Contact Us For Availability
21
Terminal Block w/Wire Lead (4 Req) WPL 318960 Contact Us For Availability
22
Strike-Main Top (Lt. or Rt.) WPL 326513 Contact Us For Availability
22
WPL 322933 WPL 322933 Contact Us For Availability
22
WPL 322935 WPL 322935 Contact Us For Availability
22
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
23
Insulation Retainer-Bottom WPL 313281 Contact Us For Availability
23
WPL 325726 WPL 325726 Contact Us For Availability
23
WPL 325728 WPL 325728 Contact Us For Availability
23
Bracket-Terminal Block (4 Req) WPL 318872 Contact Us For Availability
24
WPL 327028 WPL 327028 Contact Us For Availability
24
WPL 327030 WPL 327030 Contact Us For Availability
25
Insulation-Oven Bottom & Back (1 Piece) WPL 308861 Contact Us For Availability
25
WPL 325388 WPL 325388 Contact Us For Availability
26
Main Back WPL 326350 Contact Us For Availability
26
WPL 326417 WPL 326417 Contact Us For Availability
27
Range Service Mounting Plate WPL 327259 Contact Us For Availability
27
WPL 230710 WPL 230710 Contact Us For Availability
28
Insulator-Service Cord WPL 327242 Contact Us For Availability
28
WPL 325401 WPL 325401 Contact Us For Availability
29
Junction Block WPL 290105 Contact Us For Availability
29
WPL 239114 WPL 239114 Contact Us For Availability
30
WPL 324504 WPL 324504 Contact Us For Availability
31
Wire Shield-Upper WPL 327235 Contact Us For Availability
31
WPL 328020 WPL 328020 Contact Us For Availability
32
Wire Shield WPL 327389 Contact Us For Availability
32
WPL 328492 WPL 328492 Contact Us For Availability
34
Front Frame WPL 327409 Contact Us For Availability
34
WPL 328021 WPL 328021 Contact Us For Availability
35
Vent Tube WPL 308822 Contact Us For Availability
35
WPL 325301 WPL 325301 Contact Us For Availability
36
WPL 322937 WPL 322937 Contact Us For Availability
37
Leg Leveler (4 Req) WPL 326125 Contact Us For Availability
37
WPL 322949 WPL 322949 Contact Us For Availability
38
Storage Drawer WPL 296150 Contact Us For Availability
38
WPL 320261 WPL 320261 Contact Us For Availability
39
WPL 325337 WPL 325337 Contact Us For Availability
39
WPL 325338 WPL 325338 Contact Us For Availability
40
Front Pane WPL 326073 Contact Us For Availability
40
WPL 326077 WPL 326077 Contact Us For Availability
40
WPL 326078 WPL 326078 Contact Us For Availability
40
WPL 328347 WPL 328347 Contact Us For Availability
40
WPL 328355 WPL 328355 Contact Us For Availability
41
WPL 292240 WPL 292240 Contact Us For Availability
41
WPL 320127 WPL 320127 Contact Us For Availability
41
WPL 320131 WPL 320131 Contact Us For Availability
41
WPL 328219 WPL 328219 Contact Us For Availability
41
WPL 328222 WPL 328222 Contact Us For Availability
41
WPL 329671 WPL 329671 Contact Us For Availability
42
WPL 295850 WPL 295850 Contact Us For Availability
42
WPL 327578 WPL 327578 Contact Us For Availability
42
WPL 327582 WPL 327582 Contact Us For Availability
42
WPL 328321 WPL 328321 Contact Us For Availability
42
WPL 328322 WPL 328322 Contact Us For Availability
42
WPL 328426 WPL 328426 Contact Us For Availability
43
WPL 325883 WPL 325883 Contact Us For Availability
43
WPL 329382 WPL 329382 Contact Us For Availability
44
WPL 329852 WPL 329852 Contact Us For Availability
45
WPL 114989 WPL 114989 Contact Us For Availability
45
WPL 324307 WPL 324307 Contact Us For Availability
46
WPL 229371 WPL 229371 Contact Us For Availability
46
WPL 286327 WPL 286327 Contact Us For Availability
47
WPL 87883 WPL 87883 Contact Us For Availability
47
WPL 299979 WPL 299979 Contact Us For Availability
48
WPL 111257 WPL 111257 Contact Us For Availability
48
WPL 323820 WPL 323820 Contact Us For Availability
48
WPL 323824 WPL 323824 Contact Us For Availability
48
WPL 327639 WPL 327639 Contact Us For Availability
48
WPL 328130 WPL 328130 Contact Us For Availability
48
WPL 328216 WPL 328216 Contact Us For Availability
49
WPL 304835 WPL 304835 Contact Us For Availability
49
WPL 325471 WPL 325471 Contact Us For Availability
50
WPL 238052 WPL 238052 Contact Us For Availability
50
WPL 320257 WPL 320257 Contact Us For Availability
51
WPL 325766 WPL 325766 Contact Us For Availability
51
WPL 288197 WPL 288197 Contact Us For Availability
52
WPL 316951 WPL 316951 Contact Us For Availability
52
WPL 87403 WPL 87403 Contact Us For Availability
53
WPL 308860 WPL 308860 Contact Us For Availability
53
WPL 327797 WPL 327797 Contact Us For Availability
54
WPL 326938 WPL 326938 Contact Us For Availability
54
WPL 327799 WPL 327799 Contact Us For Availability
55
WPL 324808 WPL 324808 Contact Us For Availability
55
WPL 326031 WPL 326031 Contact Us For Availability
56
WPL 326297 WPL 326297 Contact Us For Availability
56
WPL 325029 WPL 325029 Contact Us For Availability
57
WPL 326300 WPL 326300 Contact Us For Availability
57
WPL 320476 WPL 320476 Contact Us For Availability
57
WPL 321672 WPL 321672 Contact Us For Availability
57
WPL 327638 WPL 327638 Contact Us For Availability
57
WPL 328205 WPL 328205 Contact Us For Availability
57
WPL 328206 WPL 328206 Contact Us For Availability
58
WPL 326069 WPL 326069 Contact Us For Availability
58
WPL 325322 WPL 325322 Contact Us For Availability
58
WPL 325326 WPL 325326 Contact Us For Availability
58
WPL 327640 WPL 327640 Contact Us For Availability
58
WPL 328207 WPL 328207 Contact Us For Availability
58
WPL 328208 WPL 328208 Contact Us For Availability
59
WPL 229372 WPL 229372 Contact Us For Availability
59
WPL 325328 WPL 325328 Contact Us For Availability
60
WPL 307060 WPL 307060 Contact Us For Availability
61
WPL 306333 WPL 306333 Contact Us For Availability
62
WPL 236129 WPL 236129 Contact Us For Availability
63
WPL 327378 WPL 327378 Contact Us For Availability
63
WPL 98186 WPL 98186 Contact Us For Availability
64
WPL 327649 WPL 327649 Contact Us For Availability
64
WPL 239802 WPL 239802 Contact Us For Availability
65
WPL 237762 WPL 237762 Contact Us For Availability
65
WPL 324305 WPL 324305 Contact Us For Availability
66
WPL 327035 WPL 327035 Contact Us For Availability
66
WPL 102428 WPL 102428 Contact Us For Availability
67
WPL 327022 WPL 327022 Contact Us For Availability
67
WPL 327024 WPL 327024 Contact Us For Availability
67
WPL 293428 WPL 293428 Contact Us For Availability
68
WPL 78565 WPL 78565 Contact Us For Availability
68
WPL 327026 WPL 327026 Contact Us For Availability
× ![]()
